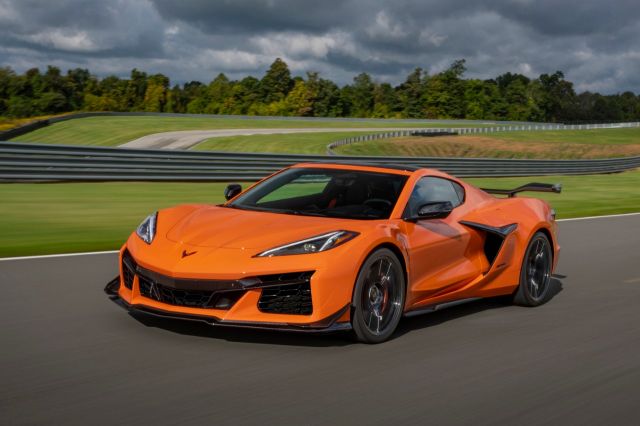

2024 Corvette Z06 Coupe Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Stingray Coupe Stingray Convertible E-Ray Coupe E-Ray Convertible Z06 Coupe Z06 Convertible

Production & Specifications

Total Production

5,227

Wheelbase

107.20"

Length

176.90"

Width

79.70"

Height

48.60"

Curb Weight

3,774.00 lbs.

Track Front/Rear

65.30" / 62.20"

Tire Size

P275/30ZR-20

Plant Built

Bowling Green

Base Engine

5.5L LT6 V8

Serial Range

1G1YW2D8XR5100001 - 1G1YW2D8XR5TBD

Total Production	5,227
Wheelbase	107.20"
Length	176.90"
Width	79.70"
Height	48.60"
Curb Weight	3,774.00 lbs.
Track F/R	65.30" / 62.20"
Tire Size	P275/30ZR-20
Plant Built	Bowling Green
Base Engine	5.5L LT6 V8
Serial Range	1G1YW2D8XR5100001 - 1G1YW2D8XR5TBD

→

📱 Rotate device for better viewing

Options for Model Year 2024, Z06 Coupe

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2024*	2025**
1LZ	Equipment Group	659	$0	$
1YH07	Z06 Coupe	5,327	$110,100	$113,404
255	GREEN	22	$0	$
2LZ	Equipment Group	1,230	$8,900	$9,167
36S	YELLOW STITCHING	209	$0	$
379	ORANGE	217	$0	$
38S	RED STITCHING	764	$0	$
3A9	BLUE	241	$0	$
3F9	RED	1,319	$0	$
3LZ	Equipment Group	3,438	$13,550	$13,957
3M9	YELLOW	312	$0	$
3N9	TAN	170	$0	$
4AA	BLACK	3,045	$0	$
4BZ	ADR RED DIPPED	181	$0	$
4G2	BLACK/ADRENALINE	1,029	$0	$
4JE	TWILIGHT BLUE/TENS	181	$0	$
4JF	BLACK/SKY COOL	376	$0	$
4JG	ARTEMIS	22	$0	$
4JH	BLACK/NATURAL	357	$0	$
4JY	NATURAL DIPPED	136	$0	$
5BX	Roof Panel Vis CF	n/a	$0	$
5DG	Tech Bronze Wheels	n/a	$0	$
5DH	Satin Graphite Z06	174	$0	$
5DK	Tech Bronze Z06 wh	154	$0	$
5DO	Bright Polished St	n/a	$0	$
5JR	Visible CF Mirror	104	$1,285	$1,324
5V5	High Wing Spoiler	n/a	$5,995	$6,175
5V7	Ground Effects Bla	n/a	$720	$742
5VM	Ground Effects Vis	n/a	$0	$
5W8	Ground Effects Car	n/a	$0	$
5YQ	Roof Panel Vis CF	n/a	$0	$
5ZC	Wheel Cap Jake Log	274	$260	$268
5ZD	Wheel Cap w/Cross	202	$260	$268
5ZU	High Wing Spoiler	n/a	$1,250	$1,288
5ZW	Stanchion Wing Sti	n/a	$0	$
5ZZ	High Wing Spoiler	n/a	$1,350	$1,391
719	BLACK	3,046	$0	$
AE4	GT2 SEAT	1,122	$1,995	$2,055
AH2	GT2 BODY CONTOUR	3,291	$0	$
AQ9	LUXURY SEAT	914	$0	$
B4Z	PERF PKG TRACTION	5,327	$0	$
BAZ	BLACKOUT PKG	1,732	$595	$613
BV4	DEDICATION	147	$295	$304
C2M	VISIBLE CARBON	n/a	$0	$
C2Q	TWO TOP PKG	n/a	$0	$
C2Z	VISIBLE CARBON	899	$2,495	$2,570
CAV	Frunk Liner	677	$0	$
CC3	TRANSPARENT	440	$0	$
CF7	PAINTED BODY COLOR	3,988	$0	$
CFV	VIS CF ROCKER SPLI	1,377	$3,995	$4,115
CFX	MUSEUM LOGO w/R8C	233	$0	$
CFZ	PTD ROCKER SPLITTE	975	$2,995	$3,085
D30	COLOR OVERRIDE	118	$695	$716
D3V	LAMP ENG COMP	2,339	$100	$103
D58	SPOILER NONE	n/a	$0	$
D84	CARB FLASH ROOF AN	n/a	$0	$
D86	BODY COLOR ROOF AN	n/a	$0	$
DPB	CARB FLSH RCNG BLU	8	$0	$
DPC	CARB FLSH RCNG YEL	5	$0	$
DPG	CARB FLSH RCNG ORN	2	$0	$
DPL	CARB FLSH RCNG FUL	58	$0	$
DPT	CARN FLSH RCNG SIL	23	$0	$
DRG	CARBON	1,695	$0	$
DSY	EDGE ORANGE FULL	3	$995	$1,025
DSZ	EDGE RED FULL	22	$995	$1,025
DT0	EDGE YELLOW FULL	4	$995	$1,025
DTB	RACING BLUE VAR 1	n/a	$0	$
DTH	CARB FLASH FULL	120	$995	$1,025
DUB	STERLING SILVER FU	45	$995	$1,025
DUW	EDGE BLUE FULL	7	$995	$1,025
DZU	CF EDGE YELLOW STI	9	$500	$515
DZV	CF MIDNIGHT SILVER	24	$500	$515
DZX	CF EDGE RED STING	26	$995	$1,025
E60	FRONT LIFT	3,520	$2,595	$2,673
EFA	DK SHADOW METALLIC	n/a	$995	$1,025
EFR	CARBON FLASH	5,101	$0	$
EFY	BODY COLOR	226	$0	$
ERI	BATTERY PACK	2,135	$100	$103
EYK	EMBLEM-CHROME	160	$0	$
EYT	EMBLEM-CARBON	5,167	$0	$
FA5	MIN HIGH GLOSS LH	474	$2,495	$2,570
FA5r	MIN HIGH GLOSS RHD	73	$2,495	$2,570
FA6	MAX HIGH GLOSS LHD	748	$1,285	$1,324
FE1	STANDARD SUSP	n/a	$0	$
FE2	MAG RIDE NON-Z51	n/a	$0	$
FE3	GT2 SUSP Z51	n/a	$0	$
FE4	RIDE & HDG Z51	n/a	$0	$
FE5	RIDE & HLG HP1	n/a	$0	$
FE6	RIDE & HLG Z06	3,906	$0	$
FE7	PERF Z06	1,421	$0	$
FE9	FEDERAL CERT	3,237	$0	$
FED	RIDE & HLG VAR 5	n/a	$0	$
G0J	AXLE REAR 4.89	n/a	$0	$
G0K	AXLE REAR 5.56	5,327	$0	$
G8G	ARCTIC WHITE	702	$0	$
G96	eLSD	5,327	$0	$
G9F	CERAMIC MATRIX GRA	155	$0	$
GA7	HYPERSONIC GRAY	391	$0	$
GAR	CARBON FLASH	277	$0	$
GBA	BLACK	862	$625	$644
GC5	AMPLIFY ORANGE	304	$995	$1,025
GD0	ACCELERATE	157	$500	$515
GJV	RIP TIDE MET	301	$0	$
GKZ	TORCH RED	763	$0	$
GM7	AXLE REAR 5.17	n/a	$0	$
GMO	RAPID BLUE	253	$0	$
GPH	RED MIST	540	$0	$
GSJ	SILVER FLARE	130	$0	$
GVR	CACTI SOLID	82	$0	$
GXA	SEA WOLF TRI MET	410	$0	$
HMO	OR BLK INT/GRAY S	15	$0	$
HNK	ADR RED DIPPED LTH	181	$0	$
HTA	BLK LTHR LV1	538	$0	$
HTE	BLACK GT2 LV3	1,049	$0	$
HTG	NATURAL SUEDE GT2	67	$0	$
HTJ	BLK CLOTH AE4 LV	106	$0	$
HTM	BLK LTHR LV2	307	$0	$
HTN	NATURAL GT2 LV2	82	$0	$
HTO	TWO TONE BLUE LTHR	181	$0	$
HTP	BLK SUEDE AH2 LV	88	$0	$
HTQ	NATURAL SUEDE GT2	23	$0	$
HTT	BLACK SUEDE GT2	698	$0	$
HU0	OR BLK INT/ADR RE	88	$0	$
HU1	GRAY GT2 LV3	113	$0	$
HU2	ADR RED GT2 LV3	269	$0	$
HU6	GRAY SUEDE GT2 LV	28	$0	$
HU7	ADR RED SUEDE GT2	109	$0	$
HU9	GRAY SUEDE GT2 LV	80	$0	$
HUA	ADR RED SUEDE GT2	189	$0	$
HUE	NATURAL GT2 LV3	136	$0	$
HUF	NATURAL DIPPED SUE	47	$0	$
HUK	GRAY GT2 LV2	63	$0	$
HUL	ADR RED GT2 LV2	169	$0	$
HUN	GRAY GT1 LV2	32	$0	$
HUP	GRAY LTHR LV1	42	$0	$
HUQ	ADR RED LTHR LV1	182	$0	$
HUR	ADR RED GT1 LV2	71	$0	$
HUU	OR ADR RED INT/BL	21	$0	$
HUV	NATURAL GT1 LV2	49	$0	$
HV2	LEATHER LV 3.2	22	$0	$
HVT	OR BLK INT/GRAY S	10	$0	$
HVV	OR BLK INT/GRAY S	28	$0	$
HXO	OR BLK INT/ADR RE	128	$0	$
HZB	OR BLK INT/GRAY S	8	$0	$
HZN	NATURAL GT2 LV3	89	$0	$
HZP	OR ADR RED INT/BL	19	$0	$
IOK	RADIO INFOTAINMENT	5,327	$0	$
IWE	WRAP SUEDE INT	3,438	$0	$
J55	HEAVY DUTY	n/a	$0	$
J56	HD Z06	3,234	$0	$
J57	BRAKES, FREE FLOW	672	$0	$
J57c	BRAKES, CERAMIC	2,093	$0	$
J6A	CALIPER BLACK	1,119	$0	$
J6D	CALIPER DK GRAY	623	$0	$
J6E	CALIPER YELLOW	499	$695	$716
J6F	CALIPER RED	2,019	$695	$716
J6L	CALIPER ORANGE	192	$0	$
J6N	CALIPER EDGE RED	875	$695	$716
JL9	FRT/RR DISC	n/a	$0	$
LHD	Left Hand Drive	5,059	$0	$
LT2	6.2L	n/a	$0	$
LT6	5.5L	5,327	$0	$
M1L	8 SPD DCT	n/a	$0	$
M1M	8 SPD	5,327	$0	$
MAN	IFOLD APPEARANCE FI	1,694	$0	$
MLH	8 SPD DCT ATSS	n/a	$0	$
N26	SUEDE	354	$0	$
N2Z	SUEDE 3SPOKE	1,253	$0	$
N3W	LEATHER 3SPOKE	2,185	$0	$
NE1	NORTHEAST CERT	1,067	$0	$
NGA	BLACK TIPS	3,344	$395	$407
NK4	GT2 LTHR	1,535	$0	$
NPP	PERFORM EXHAUST	5,327	$1,195	$1,231
NTB	FEDERAL	3,276	$0	$
NUB	CALI	n/a	$0	$
NUF	CALI	1,635	$0	$
NWI	BRIGHT TIPS	1,983	$0	$
Q8P	BRIGHT SILVER	n/a	$0	$
Q8Q	PAINTED CARB FLASH	n/a	$995	$1,025
Q99	ULTRA BR MACHINED	n/a	$1,995	$2,055
Q9A	CARB FLASH W/RED	n/a	$1,495	$1,540
Q9I	GLOSS BLACK	n/a	$995	$1,025
Q9O	SATIN GRAPHITE	n/a	$995	$1,025
Q9Y	UBM STER SILV	n/a	$1,495	$1,540
R8C	MUSEUM DELIVERY	233	$995	$1,025
RHD	Right Hand Drive	268	$0	$
RIA	Floor Liners	744	$205	$211
RIK	Rear Script - Red	149	$0	$
RIN	Rear Script - Whit	20	$0	$
RNX	Veh Cover Stingray	n/a	$0	$
ROU	PEARL NICKEL	n/a	$0	$
ROX	MET GROOVED	n/a	$0	$
ROY	CARB FBR PAINTED Z	111	$11,995	$12,355
ROZ	CARB FIB VISIBLE Z	341	$11,995	$12,355
RWH	Veh Cover Indoor B	177	$0	$
RWJ	Veh Cover Crossfla	n/a	$0	$
RWL	RWD	5,327	$0	$
RWU	Cargo Organizer	43	$0	$
RXH	Center Cap Silver	n/a	$0	$
RXI	CF Engine Cover	43	$2,195	$2,261
SOA	BLACK	2,466	$0	$
SOC	SATIN GRAPHITE	964	$0	$
SOD	MACHINED FACE	309	$0	$
SOE	TITANIUM SATIN - S	1,021	$0	$
SOM	FULLY POLISHED	n/a	$0	$
SON	HIGH GLOSS BLACK	n/a	$0	$
STZ	CARBON RED STRIPE	115	$15,500	$15,965
T0A	AERO	n/a	$0	$
T0F	CARB FIBER PAINTED	686	$8,495	$8,750
T0G	CARB FIBER EXPOSED	1,111	$10,495	$10,810
T0M	AERO	n/a	$0	$
TU7	TWO TONE SEATS	742	$595	$613
TVS	LOW PROFILE SPOILE	n/a	$595	$613
UE1	ONSTAR	4,901	$0	$
UG1	UNV GARAGE DOOR	4,386	$0	$
UQT	VEH PERF RECORDER	4,801	$1,795	$1,849
V08	HD COOLING	5,327	$0	$
VK3	FRONT LIC PLT	3,236	$0	$
XFD	eAWD	n/a	$0	$
XFN	ALL SEASON TIRE	n/a	$0	$
XFQ	Z51 TIRE	n/a	$0	$
XFR	PS 4S TIRE	3,906	$0	$
XFS	CUP 2 R TIRE	1,421	$0	$
XFT	ALL SEASON TIRE	n/a	$0	$
YF5	CA CERT	568	$0	$
Z07	PERF PKG	1,421	$8,995	$9,265
Z51	PERF PKG	n/a	$6,345	$6,535
ZER	PERF PKG	n/a	$8,995	$9,265
ZF1	AERO DELETE Z51	n/a	$0	$
ZTK	PERF PKG	n/a	$5,995	$6,175
ZYC	CARBON FLASH ACCEN	1,604	$260	$268
ZZ3	APPEARANCE	n/a	$995	$1,025

Paint Colors for Model Year 2024, Z06 Coupe

Code	Description	Quantity	Additional Charge
B8G	Artic White	702	$0.00
G9F	Ceramic Matrix Gray Metallic	155	$0.00
GA7	Hypersonic gray	931	$0.00
GAR	Carbon Flash Metallic	277	$0.00
GBA	Black	862	$0.00
GC5	Amplify Orage	304	$0.00
GD0	Accelerate Yellow	157	$0.00
GJV	Riptide Blue Metallic	301	$0.00
GKZ	Torch Red	763	$0.00
GMO	Rapid Blue	253	$0.00
GPH	Red Mist	540	$0.00
GSJ	Silver Flare Metallic	130	$0.00
GVR	Cacti Green	82	$0.00
GXA	Sea Wolf Grey Tricoat	410	$0.00
