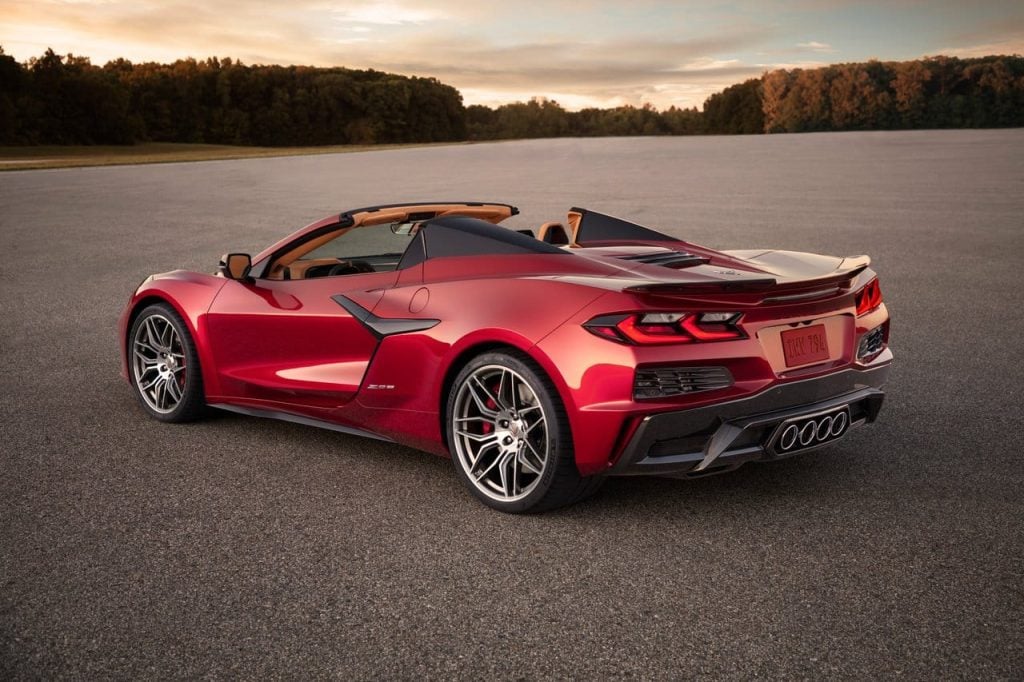

2024 Corvette Z06 Convertible Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Stingray Coupe Stingray Convertible E-Ray Coupe E-Ray Convertible Z06 Coupe Z06 Convertible

Production & Specifications

Total Production

5,248

Wheelbase

107.20"

Length

176.90"

Width

79.70"

Height

48.60"

Curb Weight

3,774.00 lbs.

Track Front/Rear

65.30" / 62.20"

Tire Size

P275/30ZR-20

Plant Built

Bowling Green

Base Engine

5.5L LT6 V8

Serial Range

1G1YW3D8XR5100001 - 1G1YW3D8XR5TBD

Total Production	5,248
Wheelbase	107.20"
Length	176.90"
Width	79.70"
Height	48.60"
Curb Weight	3,774.00 lbs.
Track F/R	65.30" / 62.20"
Tire Size	P275/30ZR-20
Plant Built	Bowling Green
Base Engine	5.5L LT6 V8
Serial Range	1G1YW3D8XR5100001 - 1G1YW3D8XR5TBD

→

📱 Rotate device for better viewing

Options for Model Year 2024, Z06 Convertible

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2024*	2025**
1LZ	Equipment Group	159	$0	$
1YH67	Z06 Convertible	5,248	$117,100	$120,614
255	GREEN	33	$0	$
2LZ	Equipment Group	864	$8,900	$9,167
36S	YELLOW STITCHING	250	$0	$
379	ORANGE	205	$0	$
38S	RED STITCHING	880	$0	$
3A9	BLUE	354	$0	$
3F9	RED	1,422	$0	$
3LZ	Equipment Group	4,225	$13,550	$13,957
3M9	YELLOW	302	$0	$
3N9	TAN	301	$0	$
4AA	BLACK	2,431	$0	$
4BZ	ADR RED DIPPED	294	$0	$
4G2	BLACK/ADRENALINE	1,010	$0	$
4JE	TWILIGHT BLUE/TENS	315	$0	$
4JF	BLACK/SKY COOL	453	$0	$
4JG	ARTEMIS	33	$0	$
4JH	BLACK/NATURAL	430	$0	$
4JY	NATURAL DIPPED	282	$0	$
5BX	Roof Panel Vis CF	n/a	$0	$
5DG	Tech Bronze Wheels	n/a	$0	$
5DH	Satin Graphite Z06	264	$0	$
5DK	Tech Bronze Z06 wh	197	$0	$
5DO	Bright Polished St	n/a	$0	$
5JR	Visible CF Mirror	140	$1,285	$1,324
5V5	High Wing Spoiler	n/a	$5,995	$6,175
5V7	Ground Effects Bla	n/a	$720	$742
5VM	Ground Effects Vis	n/a	$0	$
5W8	Ground Effects Car	n/a	$0	$
5YQ	Roof Panel Vis CF	n/a	$0	$
5ZC	Wheel Cap Jake Log	324	$260	$268
5ZD	Wheel Cap w/Cross	295	$260	$268
5ZU	High Wing Spoiler	n/a	$1,250	$1,288
5ZW	Stanchion Wing Sti	n/a	$0	$
5ZZ	High Wing Spoiler	n/a	$1,350	$1,391
719	BLACK	2,631	$0	$
AE4	GT2 SEAT	755	$1,995	$2,055
AH2	GT2 BODY CONTOUR	4,159	$0	$
AQ9	LUXURY SEAT	334	$0	$
B4Z	PERF PKG TRACTION	5,248	$0	$
BAZ	BLACKOUT PKG	2,149	$595	$613
BV4	DEDICATION	148	$295	$304
C2M	VISIBLE CARBON	n/a	$0	$
C2Q	TWO TOP PKG	n/a	$0	$
C2Z	VISIBLE CARBON	n/a	$2,495	$2,570
CAV	Frunk Liner	878	$0	$
CC3	TRANSPARENT	n/a	$0	$
CF7	PAINTED BODY COLOR	n/a	$0	$
CFV	VIS CF ROCKER SPLI	1,320	$3,995	$4,115
CFX	MUSEUM LOGO w/R8C	277	$0	$
CFZ	PTD ROCKER SPLITTE	1,152	$2,995	$3,085
D30	COLOR OVERRIDE	143	$695	$716
D3V	LAMP ENG COMP	n/a	$100	$103
D58	SPOILER NONE	n/a	$0	$
D84	CARB FLASH ROOF AN	2,301	$0	$
D86	BODY COLOR ROOF AN	318	$0	$
DPB	CARB FLSH RCNG BLU	4	$0	$
DPC	CARB FLSH RCNG YEL	6	$0	$
DPG	CARB FLSH RCNG ORN	2	$0	$
DPL	CARB FLSH RCNG FUL	64	$0	$
DPT	CARN FLSH RCNG SIL	36	$0	$
DRG	CARBON	2,048	$0	$
DSY	EDGE ORANGE FULL	1	$995	$1,025
DSZ	EDGE RED FULL	32	$995	$1,025
DT0	EDGE YELLOW FULL	10	$995	$1,025
DTB	RACING BLUE VAR 1	n/a	$0	$
DTH	CARB FLASH FULL	190	$995	$1,025
DUB	STERLING SILVER FU	49	$995	$1,025
DUW	EDGE BLUE FULL	19	$995	$1,025
DZU	CF EDGE YELLOW STI	11	$500	$515
DZV	CF MIDNIGHT SILVER	45	$500	$515
DZX	CF EDGE RED STING	45	$995	$1,025
E60	FRONT LIFT	4,156	$2,595	$2,673
EFA	DK SHADOW METALLIC	n/a	$995	$1,025
EFR	CARBON FLASH	4,958	$0	$
EFY	BODY COLOR	290	$0	$
ERI	BATTERY PACK	2,412	$100	$103
EYK	EMBLEM-CHROME	209	$0	$
EYT	EMBLEM-CARBON	5,039	$0	$
FA5	MIN HIGH GLOSS LH	589	$2,495	$2,570
FA5r	MIN HIGH GLOSS RHD	25	$2,495	$2,570
FA6	MAX HIGH GLOSS LHD	1,013	$1,285	$1,324
FE1	STANDARD SUSP	n/a	$0	$
FE2	MAG RIDE NON-Z51	n/a	$0	$
FE3	GT2 SUSP Z51	n/a	$0	$
FE4	RIDE & HDG Z51	n/a	$0	$
FE5	RIDE & HLG HP1	n/a	$0	$
FE6	RIDE & HLG Z06	3,954	$0	$
FE7	PERF Z06	1,294	$0	$
FE9	FEDERAL CERT	3,627	$0	$
FED	RIDE & HLG VAR 5	n/a	$0	$
G0J	AXLE REAR 4.89	n/a	$0	$
G0K	AXLE REAR 5.56	5,248	$0	$
G8G	ARCTIC WHITE	767	$0	$
G96	eLSD	5,248	$0	$
G9F	CERAMIC MATRIX GRA	174	$0	$
GA7	HYPERSONIC GRAY	375	$0	$
GAR	CARBON FLASH	285	$0	$
GBA	BLACK	633	$625	$644
GC5	AMPLIFY ORANGE	292	$995	$1,025
GD0	ACCELERATE	198	$500	$515
GJV	RIP TIDE MET	325	$0	$
GKZ	TORCH RED	638	$0	$
GM7	AXLE REAR 5.17	n/a	$0	$
GMO	RAPID BLUE	295	$0	$
GPH	RED MIST	652	$0	$
GSJ	SILVER FLARE	129	$0	$
GVR	CACTI SOLID	100	$0	$
GXA	SEA WOLF TRI MET	385	$0	$
HMO	OR BLK INT/GRAY S	25	$0	$
HNK	ADR RED DIPPED LTH	294	$0	$
HTA	BLK LTHR LV1	177	$0	$
HTE	BLACK GT2 LV3	1,104	$0	$
HTG	NATURAL SUEDE GT2	102	$0	$
HTJ	BLK CLOTH AE4 LV	23	$0	$
HTM	BLK LTHR LV2	202	$0	$
HTN	NATURAL GT2 LV2	71	$0	$
HTO	TWO TONE BLUE LTHR	315	$0	$
HTP	BLK SUEDE AH2 LV	47	$0	$
HTQ	NATURAL SUEDE GT2	19	$0	$
HTT	BLACK SUEDE GT2	553	$0	$
HU0	OR BLK INT/ADR RE	102	$0	$
HU1	GRAY GT2 LV3	180	$0	$
HU2	ADR RED GT2 LV3	423	$0	$
HU6	GRAY SUEDE GT2 LV	25	$0	$
HU7	ADR RED SUEDE GT2	81	$0	$
HU9	GRAY SUEDE GT2 LV	109	$0	$
HUA	ADR RED SUEDE GT2	255	$0	$
HUE	NATURAL GT2 LV3	205	$0	$
HUF	NATURAL DIPPED SUE	91	$0	$
HUK	GRAY GT2 LV2	78	$0	$
HUL	ADR RED GT2 LV2	143	$0	$
HUN	GRAY GT1 LV2	26	$0	$
HUP	GRAY LTHR LV1	15	$0	$
HUQ	ADR RED LTHR LV1	43	$0	$
HUR	ADR RED GT1 LV2	40	$0	$
HUU	OR ADR RED INT/BL	13	$0	$
HUV	NATURAL GT1 LV2	33	$0	$
HV2	LEATHER LV 3.2	33	$0	$
HVT	OR BLK INT/GRAY S	13	$0	$
HVV	OR BLK INT/GRAY S	30	$0	$
HXO	OR BLK INT/ADR RE	168	$0	$
HZB	OR BLK INT/GRAY S	7	$0	$
HZN	NATURAL GT2 LV3	191	$0	$
HZP	OR ADR RED INT/BL	12	$0	$
IOK	RADIO INFOTAINMENT	5,248	$0	$
IWE	WRAP SUEDE INT	4,225	$0	$
J55	HEAVY DUTY	n/a	$0	$
J56	HD Z06	3,088	$0	$
J57	BRAKES, FREE FLOW	866	$0	$
J57c	BRAKES, CERAMIC	2,160	$0	$
J6A	CALIPER BLACK	946	$0	$
J6D	CALIPER DK GRAY	660	$0	$
J6E	CALIPER YELLOW	503	$695	$716
J6F	CALIPER RED	1,982	$695	$716
J6L	CALIPER ORANGE	191	$0	$
J6N	CALIPER EDGE RED	966	$695	$716
JL9	FRT/RR DISC	n/a	$0	$
LHD	Left Hand Drive	5,221	$0	$
LT2	6.2L	n/a	$0	$
LT6	5.5L	5,248	$0	$
M1L	8 SPD DCT	n/a	$0	$
M1M	8 SPD	5,248	$0	$
MAN	IFOLD APPEARANCE FI	692	$0	$
MLH	8 SPD DCT ATSS	n/a	$0	$
N26	SUEDE	195	$0	$
N2Z	SUEDE 3SPOKE	1,328	$0	$
N3W	LEATHER 3SPOKE	2,897	$0	$
NE1	NORTHEAST CERT	1,086	$0	$
NGA	BLACK TIPS	3,536	$395	$407
NK4	GT2 LTHR	828	$0	$
NPP	PERFORM EXHAUST	5,248	$1,195	$1,231
NTB	FEDERAL	3,647	$0	$
NUB	CALI	n/a	$0	$
NUF	CALI	1,456	$0	$
NWI	BRIGHT TIPS	1,712	$0	$
Q8P	BRIGHT SILVER	n/a	$0	$
Q8Q	PAINTED CARB FLASH	n/a	$995	$1,025
Q99	ULTRA BR MACHINED	n/a	$1,995	$2,055
Q9A	CARB FLASH W/RED	n/a	$1,495	$1,540
Q9I	GLOSS BLACK	n/a	$995	$1,025
Q9O	SATIN GRAPHITE	n/a	$995	$1,025
Q9Y	UBM STER SILV	n/a	$1,495	$1,540
R8C	MUSEUM DELIVERY	277	$995	$1,025
RHD	Right Hand Drive	27	$0	$
RIA	Floor Liners	913	$205	$211
RIK	Rear Script - Red	198	$0	$
RIN	Rear Script - Whit	34	$0	$
RNX	Veh Cover Stingray	n/a	$0	$
ROU	PEARL NICKEL	n/a	$0	$
ROX	MET GROOVED	n/a	$0	$
ROY	CARB FBR PAINTED Z	137	$11,995	$12,355
ROZ	CARB FIB VISIBLE Z	341	$11,995	$12,355
RWH	Veh Cover Indoor B	267	$0	$
RWJ	Veh Cover Crossfla	n/a	$0	$
RWL	RWD	5,248	$0	$
RWU	Cargo Organizer	60	$0	$
RXH	Center Cap Silver	n/a	$0	$
RXI	CF Engine Cover	n/a	$2,195	$2,261
SOA	BLACK	2,381	$0	$
SOC	SATIN GRAPHITE	788	$0	$
SOD	MACHINED FACE	444	$0	$
SOE	TITANIUM SATIN - S	985	$0	$
SOM	FULLY POLISHED	n/a	$0	$
SON	HIGH GLOSS BLACK	n/a	$0	$
STZ	CARBON RED STRIPE	172	$15,500	$15,965
T0A	AERO	n/a	$0	$
T0F	CARB FIBER PAINTED	722	$8,495	$8,750
T0G	CARB FIBER EXPOSED	958	$10,495	$10,810
T0M	AERO	n/a	$0	$
TU7	TWO TONE SEATS	995	$595	$613
TVS	LOW PROFILE SPOILE	n/a	$595	$613
UE1	ONSTAR	5,103	$0	$
UG1	UNV GARAGE DOOR	5,042	$0	$
UQT	VEH PERF RECORDER	5,113	$1,795	$1,849
V08	HD COOLING	5,248	$0	$
VK3	FRONT LIC PLT	2,771	$0	$
XFD	eAWD	n/a	$0	$
XFN	ALL SEASON TIRE	n/a	$0	$
XFQ	Z51 TIRE	n/a	$0	$
XFR	PS 4S TIRE	3,954	$0	$
XFS	CUP 2 R TIRE	1,294	$0	$
XFT	ALL SEASON TIRE	n/a	$0	$
YF5	CA CERT	370	$0	$
Z07	PERF PKG	1,294	$8,995	$9,265
Z51	PERF PKG	n/a	$6,345	$6,535
ZER	PERF PKG	n/a	$8,995	$9,265
ZF1	AERO DELETE Z51	n/a	$0	$
ZTK	PERF PKG	n/a	$5,995	$6,175
ZYC	CARBON FLASH ACCEN	1,935	$260	$268
ZZ3	APPEARANCE	1,229	$995	$1,025

Paint Colors for Model Year 2024, Z06 Convertible

Code	Description	Quantity	Additional Charge
B8G	Artic White	767	$0.00
G9F	Ceramic Matrix Gray Metallic	174	$0.00
GA7	Hypersonic gray	375	$0.00
GAR	Carbon Flash Metallic	285	$0.00
GBA	Black	633	$0.00
GC5	Amplify Orage	292	$0.00
GD0	Accelerate Yellow	198	$0.00
GJV	Riptide Blue Metallic	325	$0.00
GKZ	Torch Red	638	$0.00
GMO	Rapid Blue	295	$0.00
GPH	Red Mist	652	$0.00
GSJ	Silver Flare Metallic	129	$0.00
GVR	Cacti Green	100	$0.00
GXA	Sea Wolf Grey Tricoat	385	$0.00
