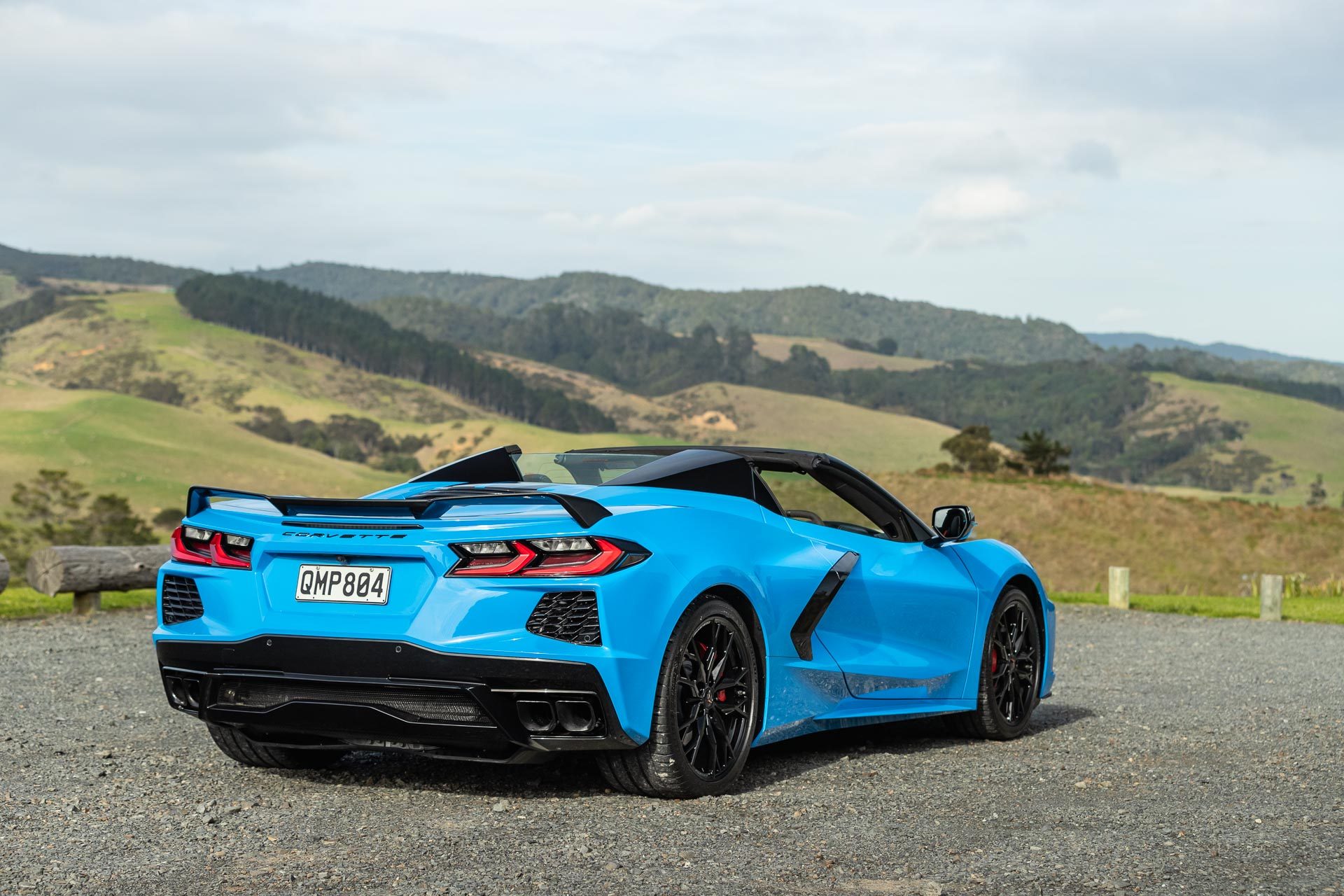

2024 Corvette Stingray Convertible Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Stingray Coupe Stingray Convertible E-Ray Coupe E-Ray Convertible Z06 Coupe Z06 Convertible

Production & Specifications

Total Production

12,803

Wheelbase

107.20"

Length

176.90"

Width

76.10"

Height

48.60"

Curb Weight

3,467.00 lbs.

Track Front/Rear

64.90" / 62.40"

Tire Size

P245/35ZR-19

Plant Built

Bowling Green

Base Engine

6.2L LT2 V8

Serial Range

1G1YF3D0XR5100001 - 1G1YF3D0XR5TBD

Total Production	12,803
Wheelbase	107.20"
Length	176.90"
Width	76.10"
Height	48.60"
Curb Weight	3,467.00 lbs.
Track F/R	64.90" / 62.40"
Tire Size	P245/35ZR-19
Plant Built	Bowling Green
Base Engine	6.2L LT2 V8
Serial Range	1G1YF3D0XR5100001 - 1G1YF3D0XR5TBD

→

📱 Rotate device for better viewing

Options for Model Year 2024, Stingray Convertible

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2024*	2025**
1LT	Equipment Group	1,552	$0	$
1YY67	Stingray Convertible	12,803	$75,300	$77,559
255	GREEN	81	$0	$
2LT	Equipment Group	5,802	$7,100	$7,313
36S	YELLOW STITCHING	215	$0	$
379	ORANGE	247	$0	$
38S	RED STITCHING	812	$0	$
3A9	BLUE	595	$0	$
3F9	RED	2,374	$0	$
3LT	Equipment Group	5,449	$11,750	$12,103
3M9	YELLOW	416	$0	$
3N9	TAN	569	$0	$
4AA	BLACK	5,618	$0	$
4BZ	ADR RED DIPPED	401	$0	$
4G2	BLACK/ADRENALINE	3,087	$0	$
4JE	TWILIGHT BLUE/TENS	437	$0	$
4JF	BLACK/SKY COOL	1,287	$0	$
4JG	ARTEMIS	81	$0	$
4JH	BLACK/NATURAL	1,433	$0	$
4JY	NATURAL DIPPED	459	$0	$
5BX	Roof Panel Vis CF	n/a	$0	$
5DG	Tech Bronze Wheels	303	$0	$
5DH	Satin Graphite Z06	n/a	$0	$
5DK	Tech Bronze Z06 wh	n/a	$0	$
5DO	Bright Polished St	243	$0	$
5JR	Visible CF Mirror	10	$1,285	$1,324
5V5	High Wing Spoiler	n/a	$5,995	$6,175
5V7	Ground Effects Bla	60	$720	$742
5VM	Ground Effects Vis	n/a	$0	$
5W8	Ground Effects Car	n/a	$0	$
5YQ	Roof Panel Vis CF	n/a	$0	$
5ZC	Wheel Cap Jake Log	146	$260	$268
5ZD	Wheel Cap w/Cross	236	$260	$268
5ZU	High Wing Spoiler	396	$1,250	$1,288
5ZW	Stanchion Wing Sti	1	$0	$
5ZZ	High Wing Spoiler	3	$1,350	$1,391
719	BLACK	8,521	$0	$
AE4	GT2 SEAT	740	$1,995	$2,055
AH2	GT2 BODY CONTOUR	8,253	$0	$
AQ9	LUXURY SEAT	3,810	$0	$
B4Z	PERF PKG TRACTION	4,260	$0	$
BAZ	BLACKOUT PKG	3,139	$595	$613
BV4	DEDICATION	164	$295	$304
C2M	VISIBLE CARBON	n/a	$0	$
C2Q	TWO TOP PKG	n/a	$0	$
C2Z	VISIBLE CARBON	n/a	$2,495	$2,570
CAV	Frunk Liner	1,579	$0	$
CC3	TRANSPARENT	n/a	$0	$
CF7	PAINTED BODY COLOR	n/a	$0	$
CFV	VIS CF ROCKER SPLI	n/a	$3,995	$4,115
CFX	MUSEUM LOGO w/R8C	399	$0	$
CFZ	PTD ROCKER SPLITTE	n/a	$2,995	$3,085
D30	COLOR OVERRIDE	304	$695	$716
D3V	LAMP ENG COMP	n/a	$100	$103
D58	SPOILER NONE	480	$0	$
D84	CARB FLASH ROOF AN	4,769	$0	$
D86	BODY COLOR ROOF AN	653	$0	$
DPB	CARB FLSH RCNG BLU	7	$0	$
DPC	CARB FLSH RCNG YEL	7	$0	$
DPG	CARB FLSH RCNG ORN	n/a	$0	$
DPL	CARB FLSH RCNG FUL	121	$0	$
DPT	CARN FLSH RCNG SIL	57	$0	$
DRG	CARBON	5,314	$0	$
DSY	EDGE ORANGE FULL	3	$995	$1,025
DSZ	EDGE RED FULL	52	$995	$1,025
DT0	EDGE YELLOW FULL	6	$995	$1,025
DTB	RACING BLUE VAR 1	n/a	$0	$
DTH	CARB FLASH FULL	330	$995	$1,025
DUB	STERLING SILVER FU	108	$995	$1,025
DUW	EDGE BLUE FULL	52	$995	$1,025
DZU	CF EDGE YELLOW STI	26	$500	$515
DZV	CF MIDNIGHT SILVER	45	$500	$515
DZX	CF EDGE RED STING	82	$995	$1,025
E60	FRONT LIFT	7,579	$2,595	$2,673
EFA	DK SHADOW METALLIC	45	$995	$1,025
EFR	CARBON FLASH	11,929	$0	$
EFY	BODY COLOR	829	$0	$
ERI	BATTERY PACK	5,021	$100	$103
EYK	EMBLEM-CHROME	547	$0	$
EYT	EMBLEM-CARBON	12,256	$0	$
FA5	MIN HIGH GLOSS LH	956	$2,495	$2,570
FA5r	MIN HIGH GLOSS RHD	137	$2,495	$2,570
FA6	MAX HIGH GLOSS LHD	n/a	$1,285	$1,324
FE1	STANDARD SUSP	3,647	$0	$
FE2	MAG RIDE NON-Z51	1,424	$0	$
FE3	GT2 SUSP Z51	3,472	$0	$
FE4	RIDE & HDG Z51	4,260	$0	$
FE5	RIDE & HLG HP1	n/a	$0	$
FE6	RIDE & HLG Z06	n/a	$0	$
FE7	PERF Z06	n/a	$0	$
FE9	FEDERAL CERT	8,489	$0	$
FED	RIDE & HLG VAR 5	n/a	$0	$
G0J	AXLE REAR 4.89	5,071	$0	$
G0K	AXLE REAR 5.56	n/a	$0	$
G8G	ARCTIC WHITE	2,055	$0	$
G96	eLSD	7,732	$0	$
G9F	CERAMIC MATRIX GRA	465	$0	$
GA7	HYPERSONIC GRAY	934	$0	$
GAR	CARBON FLASH	533	$0	$
GBA	BLACK	1,257	$625	$644
GC5	AMPLIFY ORANGE	546	$995	$1,025
GD0	ACCELERATE	341	$500	$515
GJV	RIP TIDE MET	837	$0	$
GKZ	TORCH RED	1,819	$0	$
GM7	AXLE REAR 5.17	7,732	$0	$
GMO	RAPID BLUE	651	$0	$
GPH	RED MIST	1,756	$0	$
GSJ	SILVER FLARE	349	$0	$
GVR	CACTI SOLID	399	$0	$
GXA	SEA WOLF TRI MET	861	$0	$
HMO	OR BLK INT/GRAY S	19	$0	$
HNK	ADR RED DIPPED LTH	401	$0	$
HTA	BLK LTHR LV1	2,091	$0	$
HTE	BLACK GT2 LV3	1,389	$0	$
HTG	NATURAL SUEDE GT2	119	$0	$
HTJ	BLK CLOTH AE4 LV	72	$0	$
HTM	BLK LTHR LV2	1,029	$0	$
HTN	NATURAL GT2 LV2	503	$0	$
HTO	TWO TONE BLUE LTHR	437	$0	$
HTP	BLK SUEDE AH2 LV	192	$0	$
HTQ	NATURAL SUEDE GT2	83	$0	$
HTT	BLACK SUEDE GT2	603	$0	$
HU0	OR BLK INT/ADR RE	88	$0	$
HU1	GRAY GT2 LV3	318	$0	$
HU2	ADR RED GT2 LV3	606	$0	$
HU6	GRAY SUEDE GT2 LV	110	$0	$
HU7	ADR RED SUEDE GT2	322	$0	$
HU9	GRAY SUEDE GT2 LV	107	$0	$
HUA	ADR RED SUEDE GT2	301	$0	$
HUE	NATURAL GT2 LV3	337	$0	$
HUF	NATURAL DIPPED SUE	120	$0	$
HUK	GRAY GT2 LV2	364	$0	$
HUL	ADR RED GT2 LV2	869	$0	$
HUN	GRAY GT1 LV2	226	$0	$
HUP	GRAY LTHR LV1	140	$0	$
HUQ	ADR RED LTHR LV1	468	$0	$
HUR	ADR RED GT1 LV2	494	$0	$
HUU	OR ADR RED INT/BL	14	$0	$
HUV	NATURAL GT1 LV2	391	$0	$
HV2	LEATHER LV 3.2	81	$0	$
HVT	OR BLK INT/GRAY S	10	$0	$
HVV	OR BLK INT/GRAY S	28	$0	$
HXO	OR BLK INT/ADR RE	107	$0	$
HZB	OR BLK INT/GRAY S	12	$0	$
HZN	NATURAL GT2 LV3	339	$0	$
HZP	OR ADR RED INT/BL	13	$0	$
IOK	RADIO INFOTAINMENT	12,803	$0	$
IWE	WRAP SUEDE INT	5,449	$0	$
J55	HEAVY DUTY	7,732	$0	$
J56	HD Z06	n/a	$0	$
J6A	CALIPER BLACK	5,508	$0	$
J6D	CALIPER DK GRAY	n/a	$0	$
J6E	CALIPER YELLOW	805	$695	$716
J6F	CALIPER RED	4,318	$695	$716
J6L	CALIPER ORANGE	n/a	$0	$
J6N	CALIPER EDGE RED	2,172	$695	$716
JL9	FRT/RR DISC	5,071	$0	$
LHD	Left Hand Drive	12,433	$0	$
LT2	6.2L	12,803	$0	$
LT6	5.5L	n/a	$0	$
M1L	8 SPD DCT	12,803	$0	$
M1M	8 SPD	n/a	$0	$
MAN	IFOLD APPEARANCE FI	n/a	$0	$
MLH	8 SPD DCT ATSS	n/a	$0	$
N26	SUEDE	2,178	$0	$
N2Z	SUEDE 3SPOKE	n/a	$0	$
N3W	LEATHER 3SPOKE	n/a	$0	$
NE1	NORTHEAST CERT	2,618	$0	$
NGA	BLACK TIPS	5,665	$395	$407
NK4	GT2 LTHR	10,625	$0	$
NPP	PERFORM EXHAUST	11,128	$1,195	$1,231
NTB	FEDERAL	8,715	$0	$
NUB	CALI	3,544	$0	$
NUF	CALI	n/a	$0	$
NWI	BRIGHT TIPS	7,138	$0	$
Q8P	BRIGHT SILVER	2,655	$0	$
Q8Q	PAINTED CARB FLASH	2,686	$995	$1,025
Q99	ULTRA BR MACHINED	1,773	$1,995	$2,055
Q9A	CARB FLASH W/RED	1,994	$1,495	$1,540
Q9I	GLOSS BLACK	2,821	$995	$1,025
Q9O	SATIN GRAPHITE	541	$995	$1,025
Q9Y	UBM STER SILV	333	$1,495	$1,540
R8C	MUSEUM DELIVERY	399	$995	$1,025
RHD	Right Hand Drive	370	$0	$
RIA	Floor Liners	1,690	$205	$211
RIK	Rear Script - Red	230	$0	$
RIN	Rear Script - Whit	40	$0	$
RNX	Veh Cover Stingray	107	$0	$
ROU	PEARL NICKEL	n/a	$0	$
ROX	MET GROOVED	n/a	$0	$
ROY	CARB FBR PAINTED Z	n/a	$11,995	$12,355
ROZ	CARB FIB VISIBLE Z	n/a	$11,995	$12,355
RWH	Veh Cover Indoor B	290	$0	$
RWJ	Veh Cover Crossfla	103	$0	$
RWL	RWD	12,803	$0	$
RWU	Cargo Organizer	57	$0	$
RXH	Center Cap Silver	48	$0	$
RXI	CF Engine Cover	n/a	$2,195	$2,261
SOA	BLACK	n/a	$0	$
SOC	SATIN GRAPHITE	n/a	$0	$
SOD	MACHINED FACE	n/a	$0	$
SOE	TITANIUM SATIN - S	n/a	$0	$
SOM	FULLY POLISHED	n/a	$0	$
SON	HIGH GLOSS BLACK	n/a	$0	$
STZ	CARBON RED STRIPE	n/a	$15,500	$15,965
T0A	AERO	7,109	$0	$
T0F	CARB FIBER PAINTED	n/a	$8,495	$8,750
T0G	CARB FIBER EXPOSED	n/a	$10,495	$10,810
T0M	AERO	n/a	$0	$
TU7	TWO TONE SEATS	2,083	$595	$613
TVS	LOW PROFILE SPOILE	3,059	$595	$613
UE1	ONSTAR	12,081	$0	$
UG1	UNV GARAGE DOOR	10,856	$0	$
UQT	VEH PERF RECORDER	11,298	$1,795	$1,849
V08	HD COOLING	7,708	$0	$
VK3	FRONT LIC PLT	7,039	$0	$
XFD	eAWD	n/a	$0	$
XFN	ALL SEASON TIRE	5,071	$0	$
XFQ	Z51 TIRE	7,732	$0	$
XFR	PS 4S TIRE	n/a	$0	$
XFS	CUP 2 R TIRE	n/a	$0	$
XFT	ALL SEASON TIRE	n/a	$0	$
YF5	CA CERT	926	$0	$
Z07	PERF PKG	n/a	$8,995	$9,265
Z51	PERF PKG	7,732	$6,345	$6,535
ZER	PERF PKG	n/a	$8,995	$9,265
ZF1	AERO DELETE Z51	457	$0	$
ZTK	PERF PKG	n/a	$5,995	$6,175
ZYC	CARBON FLASH ACCEN	5,308	$260	$268
ZZ3	APPEARANCE	1,647	$995	$1,025

Paint Colors for Model Year 2024, Stingray Convertible

Code	Description	Quantity	Additional Charge
B8G	Artic White	2,055	$0.00
G9F	Ceramic Matrix Gray Metallic	465	$0.00
GA7	Hypersonic gray	934	$0.00
GAR	Carbon Flash Metallic	533	$0.00
GBA	Black	1,257	$0.00
GC5	Amplify Orage	546	$0.00
GD0	Accelerate Yellow	341	$0.00
GJV	Riptide Blue Metallic	837	$0.00
GKZ	Torch Red	1,819	$0.00
GMO	Rapid Blue	651	$0.00
GPH	Red Mist	1,756	$0.00
GSJ	Silver Flare Metallic	349	$0.00
GVR	Cacti Green	399	$0.00
GXA	Sea Wolf Grey Tricoat	861	$0.00
