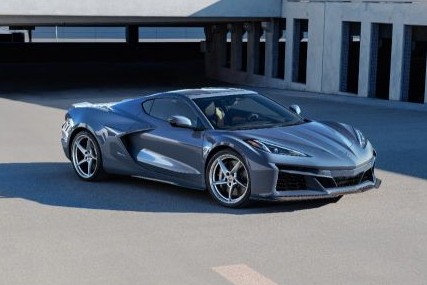

2024 Corvette E-Ray Coupe Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Stingray Coupe Stingray Convertible E-Ray Coupe E-Ray Convertible Z06 Coupe Z06 Convertible

Production & Specifications

Total Production

599

Wheelbase

107.20"

Length

176.90"

Width

76.10"

Height

48.60"

Curb Weight

3,774.00 lbs.

Track Front/Rear

64.90" / 62.40"

Tire Size

P275/30ZR-20

Plant Built

Bowling Green

Base Engine

6.2L LT2 V8 with e-AWD

Serial Range

1G1YF1D0XR5TBD - 1G1YF1D0XR5TBD

Total Production	599
Wheelbase	107.20"
Length	176.90"
Width	76.10"
Height	48.60"
Curb Weight	3,774.00 lbs.
Track F/R	64.90" / 62.40"
Tire Size	P275/30ZR-20
Plant Built	Bowling Green
Base Engine	6.2L LT2 V8 with e-AWD
Serial Range	1G1YF1D0XR5TBD - 1G1YF1D0XR5TBD

→

📱 Rotate device for better viewing

Options for Model Year 2024, E-Ray Coupe

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2024*	2025**
1LZ	Equipment Group	44	$0	$
1YG07	ERay Coupe	599	$106,595	$109,793
255	GREEN	14	$0	$
2LZ	Equipment Group	184	$8,900	$9,167
36S	YELLOW STITCHING	12	$0	$
379	ORANGE	14	$0	$
38S	RED STITCHING	56	$0	$
3A9	BLUE	67	$0	$
3F9	RED	106	$0	$
3LZ	Equipment Group	371	$13,550	$13,957
3M9	YELLOW	27	$0	$
3N9	TAN	17	$0	$
4AA	BLACK	256	$0	$
4BZ	ADR RED DIPPED	22	$0	$
4G2	BLACK/ADRENALINE	102	$0	$
4JE	TWILIGHT BLUE/TENS	32	$0	$
4JF	BLACK/SKY COOL	97	$0	$
4JG	ARTEMIS	14	$0	$
4JH	BLACK/NATURAL	60	$0	$
4JY	NATURAL DIPPED	16	$0	$
5BX	Roof Panel Vis CF	n/a	$0	$
5DG	Tech Bronze Wheels	n/a	$0	$
5DH	Satin Graphite Z06	n/a	$0	$
5DK	Tech Bronze Z06 wh	n/a	$0	$
5DO	Bright Polished St	n/a	$0	$
5JR	Visible CF Mirror	12	$1,285	$1,324
5V5	High Wing Spoiler	n/a	$5,995	$6,175
5V7	Ground Effects Bla	n/a	$720	$742
5VM	Ground Effects Vis	n/a	$0	$
5W8	Ground Effects Car	n/a	$0	$
5YQ	Roof Panel Vis CF	n/a	$0	$
5ZC	Wheel Cap Jake Log	19	$260	$268
5ZD	Wheel Cap w/Cross	6	$260	$268
5ZU	High Wing Spoiler	n/a	$1,250	$1,288
5ZW	Stanchion Wing Sti	n/a	$0	$
5ZZ	High Wing Spoiler	n/a	$1,350	$1,391
719	BLACK	354	$0	$
AE4	GT2 SEAT	69	$1,995	$2,055
AH2	GT2 BODY CONTOUR	419	$0	$
AQ9	LUXURY SEAT	111	$0	$
B4Z	PERF PKG TRACTION	599	$0	$
BAZ	BLACKOUT PKG	163	$595	$613
BV4	DEDICATION	10	$295	$304
C2M	VISIBLE CARBON	n/a	$0	$
C2Q	TWO TOP PKG	n/a	$0	$
C2Z	VISIBLE CARBON	52	$2,495	$2,570
CAV	Frunk Liner	15	$0	$
CC3	TRANSPARENT	55	$0	$
CF7	PAINTED BODY COLOR	492	$0	$
CFV	VIS CF ROCKER SPLI	111	$3,995	$4,115
CFX	MUSEUM LOGO w/R8C	19	$0	$
CFZ	PTD ROCKER SPLITTE	70	$2,995	$3,085
D30	COLOR OVERRIDE	12	$695	$716
D3V	LAMP ENG COMP	268	$100	$103
D58	SPOILER NONE	n/a	$0	$
D84	CARB FLASH ROOF AN	n/a	$0	$
D86	BODY COLOR ROOF AN	n/a	$0	$
DPB	CARB FLSH RCNG BLU	1	$0	$
DPC	CARB FLSH RCNG YEL	n/a	$0	$
DPG	CARB FLSH RCNG ORN	n/a	$0	$
DPL	CARB FLSH RCNG FUL	7	$0	$
DPT	CARN FLSH RCNG SIL	2	$0	$
DRG	CARBON	169	$0	$
DSY	EDGE ORANGE FULL	1	$995	$1,025
DSZ	EDGE RED FULL	8	$995	$1,025
DT0	EDGE YELLOW FULL	1	$995	$1,025
DTB	RACING BLUE VAR 1	5	$0	$
DTH	CARB FLASH FULL	12	$995	$1,025
DUB	STERLING SILVER FU	5	$995	$1,025
DUW	EDGE BLUE FULL	3	$995	$1,025
DZU	CF EDGE YELLOW STI	n/a	$500	$515
DZV	CF MIDNIGHT SILVER	3	$500	$515
DZX	CF EDGE RED STING	3	$995	$1,025
E60	FRONT LIFT	389	$2,595	$2,673
EFA	DK SHADOW METALLIC	n/a	$995	$1,025
EFR	CARBON FLASH	182	$0	$
EFY	BODY COLOR	417	$0	$
ERI	BATTERY PACK	175	$100	$103
EYK	EMBLEM-CHROME	71	$0	$
EYT	EMBLEM-CARBON	528	$0	$
FA5	MIN HIGH GLOSS LH	54	$2,495	$2,570
FA5r	MIN HIGH GLOSS RHD	7	$2,495	$2,570
FA6	MAX HIGH GLOSS LHD	72	$1,285	$1,324
FE1	STANDARD SUSP	n/a	$0	$
FE2	MAG RIDE NON-Z51	n/a	$0	$
FE3	GT2 SUSP Z51	n/a	$0	$
FE4	RIDE & HDG Z51	n/a	$0	$
FE5	RIDE & HLG HP1	210	$0	$
FE6	RIDE & HLG Z06	n/a	$0	$
FE7	PERF Z06	n/a	$0	$
FE9	FEDERAL CERT	385	$0	$
FED	RIDE & HLG VAR 5	389	$0	$
G0J	AXLE REAR 4.89	n/a	$0	$
G0K	AXLE REAR 5.56	n/a	$0	$
G8G	ARCTIC WHITE	81	$0	$
G96	eLSD	599	$0	$
G9F	CERAMIC MATRIX GRA	13	$0	$
GA7	HYPERSONIC GRAY	31	$0	$
GAR	CARBON FLASH	29	$0	$
GBA	BLACK	87	$625	$644
GC5	AMPLIFY ORANGE	15	$995	$1,025
GD0	ACCELERATE	6	$500	$515
GJV	RIP TIDE MET	78	$0	$
GKZ	TORCH RED	61	$0	$
GM7	AXLE REAR 5.17	599	$0	$
GMO	RAPID BLUE	36	$0	$
GPH	RED MIST	51	$0	$
GSJ	SILVER FLARE	19	$0	$
GVR	CACTI SOLID	18	$0	$
GXA	SEA WOLF TRI MET	74	$0	$
HMO	OR BLK INT/GRAY S	1	$0	$
HNK	ADR RED DIPPED LTH	22	$0	$
HTA	BLK LTHR LV1	61	$0	$
HTE	BLACK GT2 LV3	92	$0	$
HTG	NATURAL SUEDE GT2	6	$0	$
HTJ	BLK CLOTH AE4 LV	7	$0	$
HTM	BLK LTHR LV2	22	$0	$
HTN	NATURAL GT2 LV2	14	$0	$
HTO	TWO TONE BLUE LTHR	32	$0	$
HTP	BLK SUEDE AH2 LV	15	$0	$
HTQ	NATURAL SUEDE GT2	4	$0	$
HTT	BLACK SUEDE GT2	41	$0	$
HU0	OR BLK INT/ADR RE	3	$0	$
HU1	GRAY GT2 LV3	43	$0	$
HU2	ADR RED GT2 LV3	33	$0	$
HU6	GRAY SUEDE GT2 LV	7	$0	$
HU7	ADR RED SUEDE GT2	19	$0	$
HU9	GRAY SUEDE GT2 LV	13	$0	$
HUA	ADR RED SUEDE GT2	7	$0	$
HUE	NATURAL GT2 LV3	24	$0	$
HUF	NATURAL DIPPED SUE	3	$0	$
HUK	GRAY GT2 LV2	11	$0	$
HUL	ADR RED GT2 LV2	18	$0	$
HUN	GRAY GT1 LV2	11	$0	$
HUP	GRAY LTHR LV1	7	$0	$
HUQ	ADR RED LTHR LV1	5	$0	$
HUR	ADR RED GT1 LV2	15	$0	$
HUU	OR ADR RED INT/BL	3	$0	$
HUV	NATURAL GT1 LV2	12	$0	$
HV2	LEATHER LV 3.2	14	$0	$
HVT	OR BLK INT/GRAY S	1	$0	$
HVV	OR BLK INT/GRAY S	2	$0	$
HXO	OR BLK INT/ADR RE	12	$0	$
HZB	OR BLK INT/GRAY S	4	$0	$
HZN	NATURAL GT2 LV3	13	$0	$
HZP	OR ADR RED INT/BL	2	$0	$
IOK	RADIO INFOTAINMENT	599	$0	$
IWE	WRAP SUEDE INT	371	$0	$
J55	HEAVY DUTY	n/a	$0	$
J56	HD Z06	n/a	$0	$
J57	BRAKES, FREE FLOW	599	$0	$
J57c	BRAKES, CERAMIC	599	$0	$
J6A	CALIPER BLACK	n/a	$0	$
J6D	CALIPER DK GRAY	256	$0	$
J6E	CALIPER YELLOW	41	$695	$716
J6F	CALIPER RED	189	$695	$716
J6L	CALIPER ORANGE	23	$0	$
J6N	CALIPER EDGE RED	90	$695	$716
JL9	FRT/RR DISC	n/a	$0	$
LHD	Left Hand Drive	567	$0	$
LT2	6.2L	599	$0	$
LT6	5.5L	n/a	$0	$
M1L	8 SPD DCT	n/a	$0	$
M1M	8 SPD	n/a	$0	$
MAN	IFOLD APPEARANCE FI	n/a	$0	$
MLH	8 SPD DCT ATSS	599	$0	$
N26	SUEDE	52	$0	$
N2Z	SUEDE 3SPOKE	86	$0	$
N3W	LEATHER 3SPOKE	285	$0	$
NE1	NORTHEAST CERT	104	$0	$
NGA	BLACK TIPS	279	$395	$407
NK4	GT2 LTHR	176	$0	$
NPP	PERFORM EXHAUST	599	$1,195	$1,231
NTB	FEDERAL	406	$0	$
NUB	CALI	n/a	$0	$
NUF	CALI	168	$0	$
NWI	BRIGHT TIPS	320	$0	$
Q8P	BRIGHT SILVER	n/a	$0	$
Q8Q	PAINTED CARB FLASH	n/a	$995	$1,025
Q99	ULTRA BR MACHINED	n/a	$1,995	$2,055
Q9A	CARB FLASH W/RED	n/a	$1,495	$1,540
Q9I	GLOSS BLACK	n/a	$995	$1,025
Q9O	SATIN GRAPHITE	n/a	$995	$1,025
Q9Y	UBM STER SILV	n/a	$1,495	$1,540
R8C	MUSEUM DELIVERY	19	$995	$1,025
RHD	Right Hand Drive	32	$0	$
RIA	Floor Liners	46	$205	$211
RIK	Rear Script - Red	11	$0	$
RIN	Rear Script - Whit	3	$0	$
RNX	Veh Cover Stingray	n/a	$0	$
ROU	PEARL NICKEL	144	$0	$
ROX	MET GROOVED	109	$0	$
ROY	CARB FBR PAINTED Z	27	$11,995	$12,355
ROZ	CARB FIB VISIBLE Z	29	$11,995	$12,355
RWH	Veh Cover Indoor B	24	$0	$
RWJ	Veh Cover Crossfla	n/a	$0	$
RWL	RWD	n/a	$0	$
RWU	Cargo Organizer	4	$0	$
RXH	Center Cap Silver	n/a	$0	$
RXI	CF Engine Cover	n/a	$2,195	$2,261
SOA	BLACK	n/a	$0	$
SOC	SATIN GRAPHITE	n/a	$0	$
SOD	MACHINED FACE	n/a	$0	$
SOE	TITANIUM SATIN - S	n/a	$0	$
SOM	FULLY POLISHED	98	$0	$
SON	HIGH GLOSS BLACK	172	$0	$
STZ	CARBON RED STRIPE	20	$15,500	$15,965
T0A	AERO	n/a	$0	$
T0F	CARB FIBER PAINTED	n/a	$8,495	$8,750
T0G	CARB FIBER EXPOSED	n/a	$10,495	$10,810
T0M	AERO	n/a	$0	$
TU7	TWO TONE SEATS	101	$595	$613
TVS	LOW PROFILE SPOILE	n/a	$595	$613
UE1	ONSTAR	557	$0	$
UG1	UNV GARAGE DOOR	518	$0	$
UQT	VEH PERF RECORDER	560	$1,795	$1,849
V08	HD COOLING	599	$0	$
VK3	FRONT LIC PLT	331	$0	$
XFD	eAWD	599	$0	$
XFN	ALL SEASON TIRE	n/a	$0	$
XFQ	Z51 TIRE	n/a	$0	$
XFR	PS 4S TIRE	390	$0	$
XFS	CUP 2 R TIRE	n/a	$0	$
XFT	ALL SEASON TIRE	209	$0	$
YF5	CA CERT	64	$0	$
Z07	PERF PKG	n/a	$8,995	$9,265
Z51	PERF PKG	n/a	$6,345	$6,535
ZER	PERF PKG	389	$8,995	$9,265
ZF1	AERO DELETE Z51	n/a	$0	$
ZTK	PERF PKG	n/a	$5,995	$6,175
ZYC	CARBON FLASH ACCEN	160	$260	$268
ZZ3	APPEARANCE	n/a	$995	$1,025

Paint Colors for Model Year 2024, E-Ray Coupe

Code	Description	Quantity	Additional Charge
B8G	Artic White	81	$0.00
G9F	Ceramic Matrix Gray Metallic	13	$0.00
GA7	Hypersonic gray	31	$0.00
GAR	Carbon Flash Metallic	29	$0.00
GBA	Black	87	$0.00
GC5	Amplify Orage	15	$0.00
GD0	Accelerate Yellow	6	$0.00
GJV	Riptide Blue Metallic	78	$0.00
GKZ	Torch Red	61	$0.00
GMO	Rapid Blue	36	$0.00
GPH	Red Mist	51	$0.00
GSJ	Silver Flare Metallic	19	$0.00
GVR	Cacti Green	18	$0.00
GXA	Sea Wolf Grey Tricoat	74	$0.00
