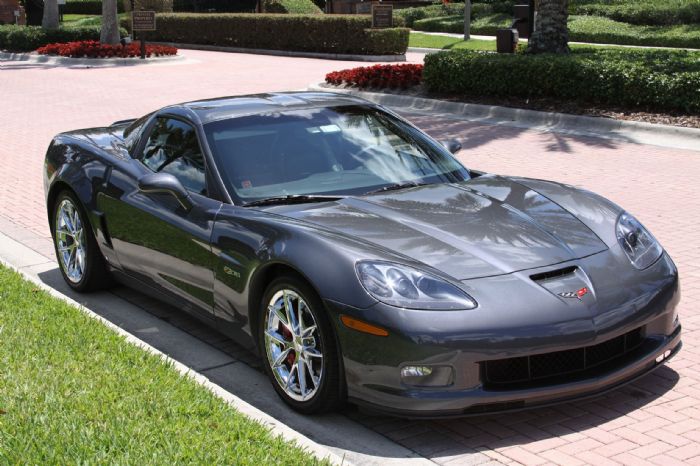

2009 Corvette Z06 Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Coupe Convertible Z06 ZR1

Production & Specifications

Total Production

3,461

Wheelbase

105.70"

Length

175.60"

Width

75.90"

Height

49.00"

Curb Weight

3,180.00 lbs.

Track Front/Rear

63.50" / 62.50"

Tire Size

FT: 285/30ZR19; RR: 335/25Z20

Plant Built

Bowling Green

Base Engine

7.0L V-8 LS7

Serial Range

n/a

Total Production	3,461
Wheelbase	105.70"
Length	175.60"
Width	75.90"
Height	49.00"
Curb Weight	3,180.00 lbs.
Track F/R	63.50" / 62.50"
Tire Size	FT: 285/30ZR19; RR: 335/25Z20
Plant Built	Bowling Green
Base Engine	7.0L V-8 LS7
Serial Range	n/a

Detailed Engine & Chassis Specifications

Engine Details

Bore & Stroke

4.125 x 4

Block Material

cast aluminum

Cylinder Head Material

cast aluminum

Valvetrain

OHV, 2 valves per cylinder

Fuel Delivery

sequential EFI

Compression Ratio

11:1

Recommended Fuel

93 octane required

Fuel Economy

Man:15/24

Transmission Type

6-speed manual

Chassis & Suspension

Chassis, Front

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Chassis, Rear

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Traction Control

electronic traction control; Active Handling

Brakes & Wheels

Brakes Type

ft and rr power-assisted disc with ABS; 6-piston ft and 4-piston rr calipers, cross-drilled rotors

Brake Rotor Size

front: 14 x 1.3; rear: 13.4 x 1

Wheel Size

front: 18 inch x 8.5 inch; rear: 19 inch x 10 inch

→

📱 Rotate device for better viewing

Options for Model Year 2009, Z06

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2009*	2025**
1YY87	Base Corvette Z06	3,461	$0	$
2LZ	Option Package	418	n/a	n/a
3LZ	Option Package	1,163	n/a	n/a
AAB	Memory Package	3,041	n/a	n/a
AQ9	Seats, Sport front bucket	3,041	n/a	n/a
AR9	Seats, front bucket with leather seating surfaces,	420	n/a	n/a
CSC	Specialty: Competition Sport Coupe	20	n/a	n/a
D30	Color Combination Override	15	n/a	n/a
DD0/DD8	Electrochromatic and Heated Mirrors	3,461	n/a	n/a
FE4	Z06 Performance Package	3,461	n/a	n/a
FE9	Emissions, Federal requirements	2,308	n/a	n/a
GT1	Specialty: GT1	55	n/a	n/a
GU6	Rear axle, 3.42 ratio, limited slip	3,461	n/a	n/a
J56	Heavy Duty Brakes - Vented	3,461	n/a	n/a
KA1	Seats, heated driver and front passenger	3,041	n/a	n/a
KNP	Transmission Cooler	3,461	n/a	n/a
KNR	Axle Cooler	3,461	n/a	n/a
KPS	Engine Oil Cooler	3,461	n/a	n/a
LS7	Engine, 7.0L (427 ci) LS7 V8 SFI	n/a	n/a	n/a
MM6	Transmission, 6-speed manual, short-throw	3,461	n/a	n/a
N37	Steering column, power telescopic with manual tilt	2,975	n/a	n/a
Q10	Wheels, spider design, Z06 Silver-painted aluminum	378	n/a	n/a
Q44	Wheels, spider design, Z06 Competition Gray-painted aluminum	372	n/a	n/a
Q76	Wheels, original design, Z06 chrome aluminum	795	n/a	n/a
Q8A	Wheels, spider design, Z06 chrome aluminum	1,903	n/a	n/a
QL9	Z06 Polished Wheel	13	n/a	n/a
R8C	Corvette Museum Delivery	64	n/a	n/a
SLL	Sold Orders	286	n/a	n/a
SLM	Stock Orders	3,025	n/a	n/a
U2K	XM Radio	3,311	n/a	n/a
U3U	Audio system with navigation	2,338	n/a	n/a
U65	Premium Bose Speaker System	3,041	n/a	n/a
U66	Base Speaker System	420	n/a	n/a
UE1	OnStar, 1-year of Safe and Sound plan	3,311	n/a	n/a
UG1	Universal Home Remote,	2,891	n/a	n/a
UPF	Bluetooth for phone	2,891	n/a	n/a
US8	Audio system, AM/FM stereo with CD player and MP3 playback	420	n/a	n/a
US9	Audio system	692	n/a	n/a
UV6	Head-Up Display,	3,461	n/a	n/a
VDN	Indoor Vehicle Cover (LPO)	75	n/a	n/a
VEB	Pedal Covers (LPO)	103	n/a	n/a
VJ5	Outdoor Vehicle Cover (LPO)	32	n/a	n/a
Z06	1YY87 -ZR1	3,461	n/a	n/a

Paint Colors for Model Year 2009, Z06

Code	Description	Quantity	Additional Charge
17U	Blade Silver Metallic	367	$0.00
41U	Black	904	$0.00
45U	Velocity Yellow Tintcoat	904	$750.00
57U	Cyber Gray Metallic	793	$0.00
74U	Victory Red	624	$0.00
83U	Atomic Orange Metallic	191	$300.00
85U	Jetstream Blue Metallic Tintcoat	295	$750.00
