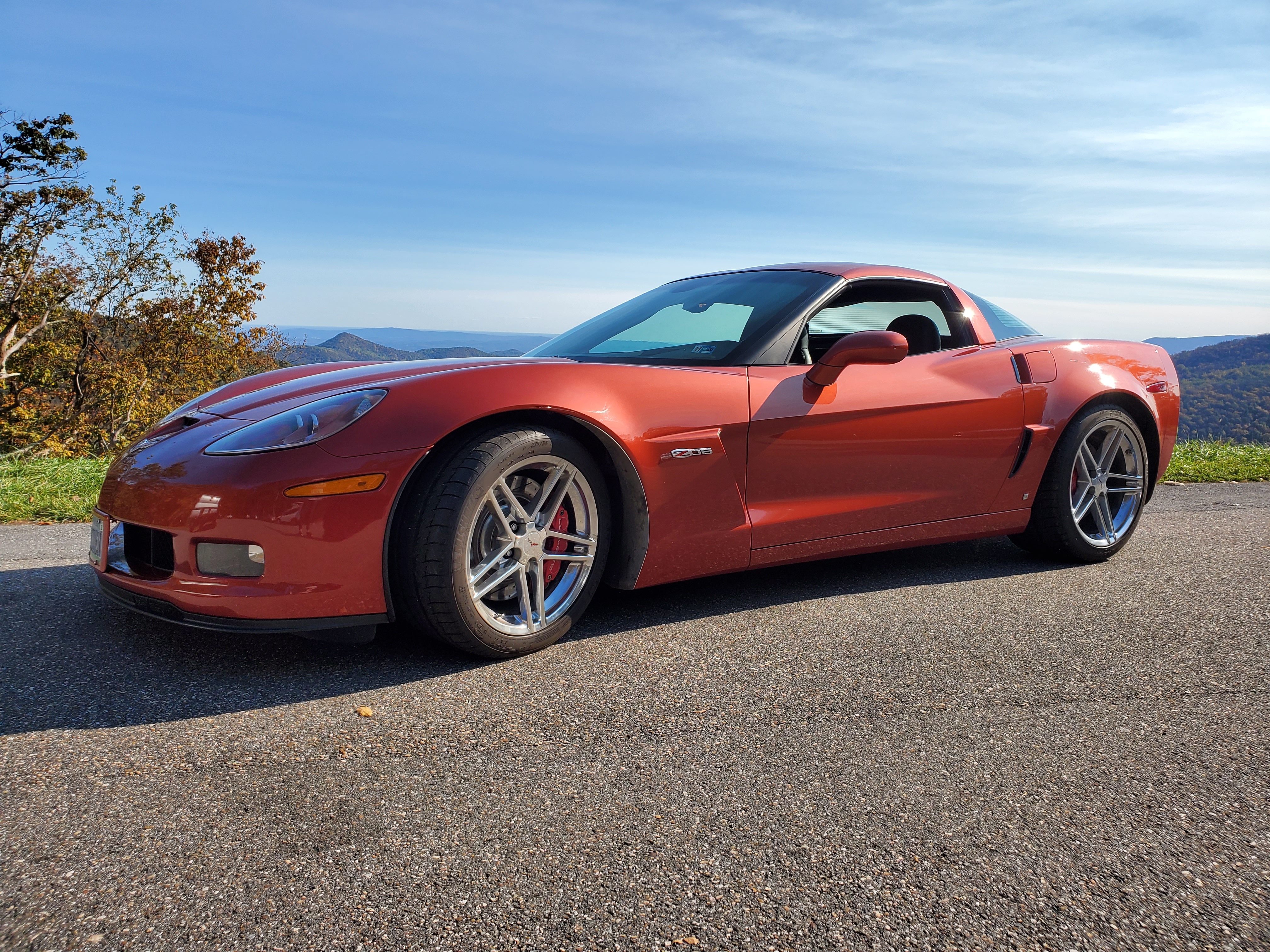

2006 Corvette Z06 Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Coupe Convertible Z06

Production & Specifications

Total Production

6,272

Wheelbase

105.70"

Length

174.60"

Width

76.00"

Height

49.10"

Curb Weight

3,130.00 lbs.

Track Front/Rear

62.10" / 60.70"

Tire Size

FT: P275/35ZR18. RR: P325/30ZR19

Plant Built

Bowling Green

Base Engine

LS7 7.0L 427ci V-8 500hp@6200 (475 lb-ft torque@4800)

Serial Range

n/a

Total Production	6,272
Wheelbase	105.70"
Length	174.60"
Width	76.00"
Height	49.10"
Curb Weight	3,130.00 lbs.
Track F/R	62.10" / 60.70"
Tire Size	FT: P275/35ZR18. RR: P325/30ZR19
Plant Built	Bowling Green
Base Engine	LS7 7.0L 427ci V-8 500hp@6200 (475 lb-ft torque@4800)
Serial Range	n/a

Detailed Engine & Chassis Specifications

Engine Details

Bore & Stroke

4.125 x 4

Block Material

cast aluminum

Cylinder Head Material

cast aluminum

Valvetrain

OHV, 2 valves per cylinder

Fuel Delivery

Sequential Fuel Injection

Compression Ratio

11:1

Recommended Fuel

93 octane

Fuel Economy

TBD

Transmission Type

Tremec 6-speed manual

Chassis & Suspension

Chassis, Front

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Chassis, Rear

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Traction Control

electronic traction control; Active Handling

Brakes & Wheels

Brakes Type

front & rear power-assisted disc with ABS w/6-piston ft & 4-piston rr calipers,cross-drilled rotors

Brake Rotor Size

front: 14 x 1.3; rear: 13.4 x 1

Wheel Size

front: 18 inch x 9.5 inch; rear: 19 inch x 12 inch

→

📱 Rotate device for better viewing

Options for Model Year 2006, Z06

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2006*	2025**
02I	Red interior	923	n/a	n/a
19I	Ebony interior	3,761	n/a	n/a
1LZ	Equipment Group	n/a	$0	$
1YY37	Base Corvette Z06	6,272	$65,000	$104,128
2LT	2LT Equipment Group	n/a	$2,900	$4,646
84I	Titanium interior (gray)	1,588	n/a	n/a
AAB	Memory Package	5,789	n/a	n/a
AQ9	Seats, front Sport bucket	5,789	n/a	n/a
AR9	Seats, front bucket	483	n/a	n/a
FE4	Z06 Performance Package	6,272	n/a	n/a
FE9	Emissions, Federal requirements	4,211	$0	$
GM9	Rear Axle ratio - 3.63	8	n/a	n/a
GU6	Axle, 3.42 ratio	6,264	n/a	n/a
LS7	Engine, 7.0L (427 ci) LS7 V8 SFI	n/a	n/a	n/a
MAE	Export Units (other than Canada and Mexico)	362	n/a	n/a
MM6	Transmission, 6-speed manual	6,272	n/a	n/a
N37	Steering column, power telescopic	5,427	n/a	n/a
NB8	Emissions override	n/a	$0	$
NC7	Emissions override, Federal	n/a	$0	$
NE1	Emissions	n/a	$0	$
Q10	Wheels, Z06 silver painted aluminum	2,544	n/a	n/a
Q44	Z06 painted wheel	279	n/a	n/a
QL9	Wheels, Z06 polished aluminum	3,449	$1,295	$2,075
R8C	Corvette Museum Delivery	447	$490	$785
U2K	Sound system feature, XM Satellite Radio	5,316	n/a	n/a
U3U	Sound system with Navigation, ETR AM/FM stereo with CD player	4,175	$1,600	$2,563
U3Uxm	AM/FM Radio w/CD Player and DVD Navigation (w/XM)	n/a	$3,340	$5,351
U3Z	Japanese Nav Radio, Voice Recognition	54	n/a	n/a
US8	Sound system, ETR AM/FM stereo with CD player and MP3 playback	362	n/a	n/a
US9	Sound system, ETR AM/FM stereo with 6-disc	1,681	$1,740	$2,787
VK3	License plate bracket, front	n/a	$0	$
YF5	Emissions, California state requirements	n/a	$0	$
Z49	Canadian Units	310	n/a	n/a

Paint Colors for Model Year 2006, Z06

Code	Description	Quantity	Additional Charge
19U	LeMans Blue Metallic	671	$300.00
41U	Black	1,672	$0.00
45U	Velocity Yellow	1,464	$750.00
67U	Machine Silver Metallic	978	$0.00
81U	Victory Red	1,205	$0.00
88U	Daytona Sunset Orange Metallic	282	$0.00
