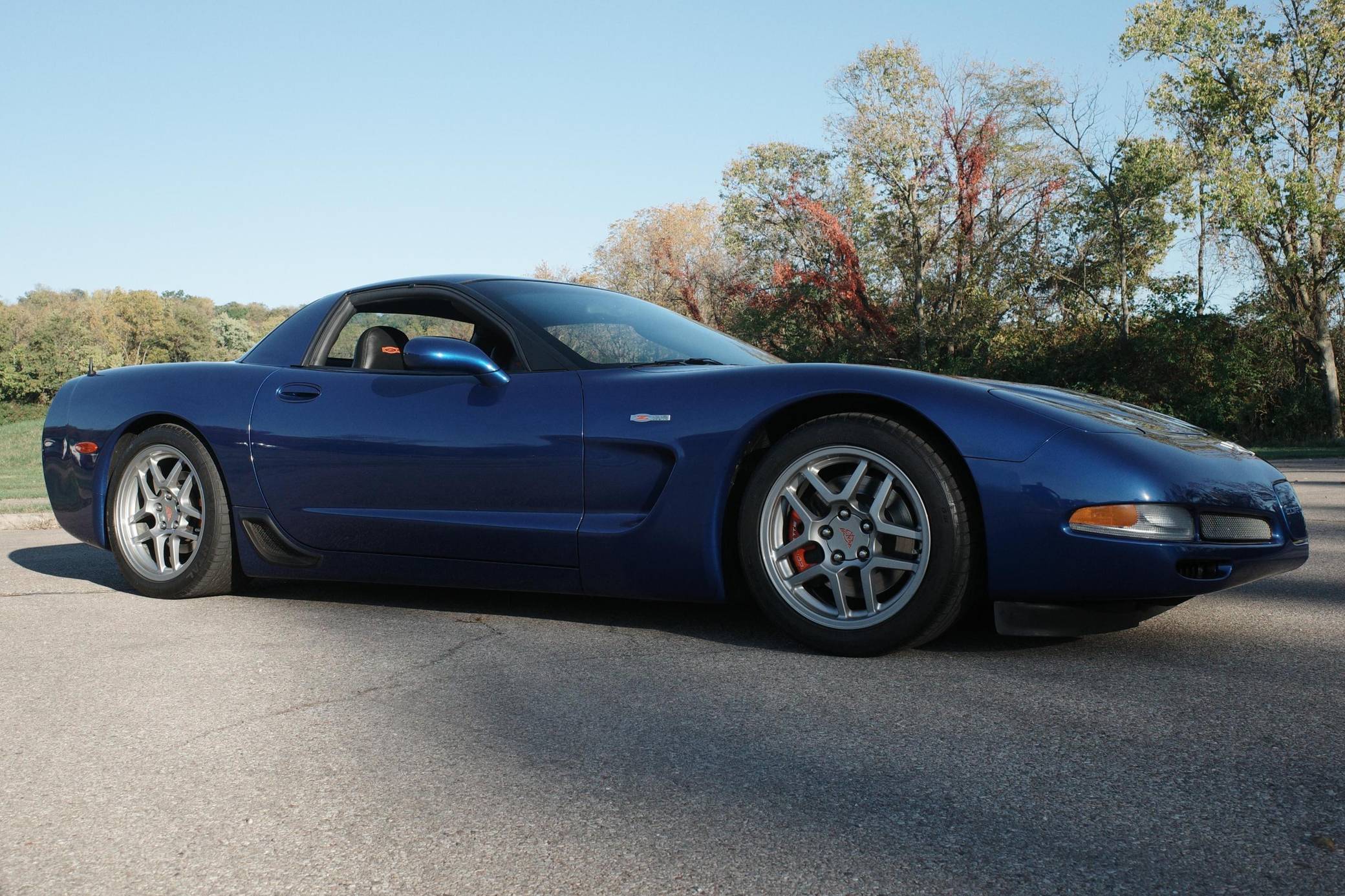

2003 Corvette Z06 Specifications, Options and Production Numbers

Explore comprehensive Corvette specifications, production numbers, options, and color codes by model year. Your complete reference for authentic restoration and research.

Available Body Styles:

Coupe Convertible Z06

Production & Specifications

Total Production

8,635

Wheelbase

104.50"

Length

179.70"

Width

73.60"

Height

47.70"

Curb Weight

3,118.00 lbs.

Track Front/Rear

61.80" / 62.60"

Tire Size

FT:P265/40ZR-17, RR:P295/35ZR18

Plant Built

Bowling Green

Base Engine

5.7L LS6 V8

Serial Range

1G1YY22G235100001 - 1G1YY22G23535469

Total Production	8,635
Wheelbase	104.50"
Length	179.70"
Width	73.60"
Height	47.70"
Curb Weight	3,118.00 lbs.
Track F/R	61.80" / 62.60"
Tire Size	FT:P265/40ZR-17, RR:P295/35ZR18
Plant Built	Bowling Green
Base Engine	5.7L LS6 V8
Serial Range	1G1YY22G235100001 - 1G1YY22G23535469

→

📱 Rotate device for better viewing

Options for Model Year 2003, Z06

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars

Code	Description	Quantity	2003*	2025**
152	TRIM COMBINATION,SHALE,LEATHER	n/a	n/a	n/a
15I	INTERIOR TRIM COLOR: SHALE	n/a	n/a	n/a
19U	PRIMARY COLOR,EXTERIOR, LEMANS BLUE	n/a	n/a	n/a
1SA	Base Equipment Group	8,613	$0	$
1SB	Option Package		$1,200	$2,098
1SC	PACKAGE-OPTION 03, PREFERRED EQUIPMENT GROUP 2	n/a	n/a	n/a
1SZ	PACKAGE OPTION-PREFERRED EQUIPMENT SAVINGS	n/a	n/a	n/a
1YY37	Base Z06 Hardtop	8,635	$51,155	$89,436
79U	Millennium Yellow Paint w/ Tint	1,708	$750	$1,311
AAB	Memory Package(Requires RPO CJ2)	8,241	$175	$306
AG1	Power 6-Way Driver Seat(Std. on Z06)	n/a	$305	$533
AK5	INFLATABLE RESTRAINT SYSTEM, DRIVER AND PASSENGER	n/a	n/a	n/a
AN4	Child Seat Tether	n/a	n/a	n/a
AP9	NET CONVENIENCE	n/a	n/a	n/a
AQ9	Driver/Pass. Recl. Bucket Seats		$0	$
AR9	Driver/Pass. Bucket Seats (Euro)	8,635	$0	$
AX4	CONVERSION, SEAT BELT, MANUAL, EUROPEAN	n/a	n/a	n/a
B34	Floor Mats	n/a	$25	$44
B4H	MODIFICATION, NOISE CONTROL, EXPORT	n/a	n/a	n/a
B84	Body Side Moldings	5,408	$150	$262
BAG	PARTS PACKAGE, EXPORT	n/a	n/a	n/a
BCC	CYLINDER UNIT PASSENGER DOOR	n/a	n/a	n/a
BGR	PLANT CODE BOWLING GREEN, KY, USA	n/a	n/a	n/a
C05	ROOF, CONVERTIBLE FOLDING	n/a	n/a	n/a
C2L	Dual Roof Package		$1,200	$2,098
CC3	Transparent Roof Panel		$750	$1,311
CF7	Non-Transparent Roof Panel		$0	$
CJ2	Automatic Climate Control	8,635	$0	$
CV3	Mexico Export	n/a	$0	$
DD0	Electronic Monochromatic Mirrors	n/a	$120	$210
DD8	MIRROR, INSIDE, R/V LIGHT SENSITIVE	n/a	n/a	n/a
DL5	DECAL ROADSIDE SERVICE INFORMATION	n/a	n/a	n/a
DL8	MIRRORS, OUTSIDE, LH/RH REMOTE CONTROL ELECTRIC, HEATED	n/a	n/a	n/a
EXP	Export Option	n/a	n/a	n/a
F55	CHASSIS CONTINUOUSLY VARIABLE REAL TIME DAMPING MAGNETO RHEOLOGICAL	n/a	n/a	n/a
FE1	Base Suspension		$0	$
FE3	Sport Suspension(Included with Z51)	n/a	$0	$
FE4	SUSPENSION SYSTEM, SPECIAL RIDE AND HANDLING	n/a	n/a	n/a
FE9	Federal Emissions	6,544	$0	$
G90	AXLE, REAR, 3.15 RATIO	n/a	n/a	n/a
G92	AXLE, REAR, PERFORMANCE RATIO	n/a	n/a	n/a
GU2	Std. Axle Ratio 2.73:1 MXO Auto		$0	$
GU6	Std. Axle Ratio 3.42:1 Six Speed	8,635	$0	$
JL9	BRAKE SYSTEM, POWER, FRONT & REAR DISC, ANTILOCK, 4-WHEEL	n/a	n/a	n/a
K05	HEATER, ENGINE BLOCK	n/a	n/a	n/a
K63	GENERATOR, 110 AMP	n/a	n/a	n/a
LS1	Std. 5.7L SFI Aluminum V8 350 hp Engine		$0	$
LS6	5.7L SFI Aluminum V8, 405 hp Engine(1YY37 only)	8,635	$0	$
M12	TRANSMISSION, MANUAL 6-SPEED, 85 MM, 2.97 1ST, 0.57 6TH, O/D	n/a	n/a	n/a
M30	Elect. 4spd. Automatic Transmission		$0	$
MM6	6-speed Manual		$915	$1,600
MN6	MERCHANDISED TRANSMISSION, MANUAL 6-SPEED PROVISIONS	n/a	n/a	n/a
MX0	MERCHANDISED TRANSMISSION, AUTOMATIC O/D PROVISIONS	n/a	n/a	n/a
N37	Steering Column, Power Telescope Manual Tilt		$350	$612
N73	Magnesium Wheels		n/a	n/a
NA3	EMISSION SYSTEM, JAPAN	n/a	n/a	n/a
NB8	CA/Northeast Emission Override	n/a	$0	$
NC1	EMISSION SYSTEM, CALIFORNIA LEV	n/a	n/a	n/a
NC7	Federal Emissions Override	n/a	$0	$
NF7	EMISSION SYSTEM, FEDERAL, NLEV	n/a	n/a	n/a
NF9	EMISSION SYSTEM, FEDERAL, NLEV	n/a	n/a	n/a
NG1	Massachusetts/New York Emissions Requirements	n/a	$0	$
NK4	STEERING WHEEL, SPORT LEATHER	n/a	n/a	n/a
NP7	STEERING COLUMN, EEC APPROVED	n/a	n/a	n/a
NT3	EMISSION SYSTEM EEC 00	n/a	n/a	n/a
P12	WHEEL, 17 X 9.5 FRONT AND 18 X 10.5 REAR, CAST ALUMINUM	n/a	n/a	n/a
QD4	Domestic Standard Five Spoke Wheels	n/a	$0	$
QF5	WHEEL, 17.0 X 8.5" FRONT AND 18.0 X 9.5" REAR, ALUMINUM, POLISHED	n/a	n/a	n/a
QG1	WHEEL, 17.0 X 8.5" FRONT AND 18.0 X 9.5" REAR, ALUMINUM, PAINTED	n/a	n/a	n/a
R6M	New Jersey Surcharge (mandatory in NJ)	n/a	$0	$
R8C	Museum Delivery Package	n/a	$490	$857
RPA	REAR PARKING ASSIST	n/a	n/a	n/a
T2F	BRAKE PROVISIONS SPECIAL	n/a	n/a	n/a
T82	HEADLAMP CONTROL, AUTOMATIC ON-OFF	n/a	n/a	n/a
T84	HEADLAMPS, RH RULE OF ROAD, E MARK	n/a	n/a	n/a
T85	HEADLAMPS, LH RULE OF ROAD, E MARK	n/a	n/a	n/a
T89	LAMPS, TAIL & STOP, EXPORT	n/a	n/a	n/a
T90	LAMPS, SIGNALING & MARKER, FRONT, EXPORT	n/a	n/a	n/a
T93	LAMPS, TAIL & STOP, SPECIAL	n/a	n/a	n/a
U19	INSTRUMENT CLUSTER, SPEEDOMETER, METRIC (CANADIAN, EXPORT)	n/a	n/a	n/a
U1S	Remote Compact 12-Disc Changer (All Models)		$600	$1,049
U52	INSTRUMENT CLUSTER, ELECTRONIC	n/a	n/a	n/a
U73	ANTENNA, FIXED, RADIO	n/a	n/a	n/a
U75	ANTENNA, POWER, RADIO	n/a	n/a	n/a
UD4	ALARM, VEHICLE SPEED, 120 KM/H	n/a	n/a	n/a
UK1	RADIO FREQUENCIES, JAPANESE	n/a	n/a	n/a
UL0	AM/FM Stereo Cassette-Bose		n/a	n/a
UL2	RADIO FREQUENCIES, EUROPEAN	n/a	n/a	n/a
UN0	Stereo System Delco-Bose with CD	8,635	$100	$175
UV6	Heads-Up Display	n/a	n/a	n/a
UV7	ANTENNA, WINDSHIELD, REAR WINDOW, RADIO	n/a	n/a	n/a
UZ6	SPEAKER SYSTEM 6, QUAD FRONT DOOR MOUNTED, DUAL QUARTER MOUNTED	n/a	n/a	n/a
V49	Front License Plate Frame	5,315	$15	$26
V73	VEHICLE STATEMENT, US/CANADA	n/a	n/a	n/a
V76	TOW HOOKS	n/a	n/a	n/a
V87	VEHICLE STATEMENT, GULF STATES ORGANIZATION	n/a	n/a	n/a
VD1	PROVISION OPTIONS, EUROPE	n/a	n/a	n/a
VDC	VEHICLE INFORMATION CD, CUSTOMER ORIENTATION	n/a	n/a	n/a
VE1	PROVISION OPTIONS, JAPAN	n/a	n/a	n/a
VG1	PROTECTOR UNDERHOOD COMPOUND, CORROSION PREVENTIVE, WATER BASED, CLEAR	n/a	n/a	n/a
VG8	VEHICLE LABEL, NOTICE TO BUYER	n/a	n/a	n/a
VG9	PROTECTOR, WAX, EXTERIOR BODY	n/a	n/a	n/a
VH5	PLATE, VEHICLE IDENTIFICATION	n/a	n/a	n/a
VL4	LICENSE PLATE MOUNTING PACKAGE, FRONT, EEC	n/a	n/a	n/a
XFW	TIRE, FRONT, P265/40R17 BW R/PE ST TL HW4	n/a	n/a	n/a
XGG	Front Tire - P245/45ZR17 BW SBR	n/a	$0	$
XMC	TIRE, FRONT, P245/45R17-89Y,BW R/PE ST TL HW4	n/a	n/a	n/a
YF5	California Emissions	n/a	$0	$
YFU	TIRE, REAR, P295/35R18-91Y, BW R/PE ST TL HW4	n/a	n/a	n/a
YGH	Rear Tire - P275/40ZR18 BW SBR	n/a	$0	$
YME	TIRE, REAR, P275/40R18-94Y, BW TL HW4 SBR	n/a	n/a	n/a
Z25	APPEARANCE PACKAGE 50TH ANNIVERSARY, LIMITED EDITION	n/a	n/a	n/a
Z49	Canadian Options	n/a	$0	$
Z51	Performance Handling Package		$395	$691
Z5X	MIRROR PROVISIONS, ARABIC LANGUAGE	n/a	n/a	n/a

Paint Colors for Model Year 2003, Z06

Code	Description	Quantity	Additional Charge
12	Quicksilver Metallic	1,089	$0.00
21	Electron Blue Metallic	1,272	$0.00
41	Black	2,599	$0.00
70	Torch Red	1,967	$0.00
79	Millennium Yellow	1,708	$750.00
